دوربین مداربسته انالوگ هایک ویژن DS-2CE55A2P-IRP
برای استعلام قیمت تماس بگیرید
دوربین مداربسته انالوگ (Dome)
Camera |
||
|---|---|---|
Image Sensor: |
| |
1/3” DIS |
Signal System: |
| |
PAL/NTSC |
Effective Pixels: |
| |
976(H)×496(V) |
Min. Illumination: |
| |
0.1 Lux @ (F1.2,AGC ON),0 Lux with IR |
Shutter Time: |
| |
1/25(1/30) s to 1/50,000 s |
Lens: |
| |
3.6 mm (2.8mm,6mm optional)Angle of view: 68.4° (3.6 mm) |
Lens Mount: |
| |
M12 |
Adjustment Range: |
| |
Pan: 0 – 355°, Tilt: 0 – 85°, Rotation: 0 – 360° |
Day& Night: |
| |
IR cut filter with auto switch |
Horizontal Resolution: |
| |
700 TVL |
Synchronization: |
| |
Internal Synchronization |
Video Output: |
| |
1Vp-p Composite Output (75Ω/BNC) |
S/N Ratio: |
| |
More than 62 dB |
General |
||
Operating Conditions: |
| |
-40 °C – 60 °C (-40 °F – 140 °F)Humidity 90% or less (non-condensing) |
Power Supply: |
| |
12 V DC±10% |
Power Consumption: |
| |
Max. 1.8 W(Max. 4 W with IR cut filter on) |
IR Range: |
| |
Approx 10 to 20 meters |
Dimension: |
| |
Φ89.5 × 69.8 mm (3.52” × 2.75”) |
Weight: |
| |
200 g (0.44 lbs) |
محصولات مرتبط
-

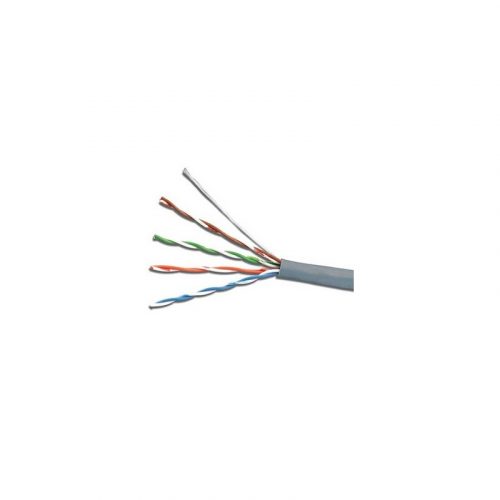

کابل شبکه نگزنس cat6 utp nexans lszh
تماس بگیرید -

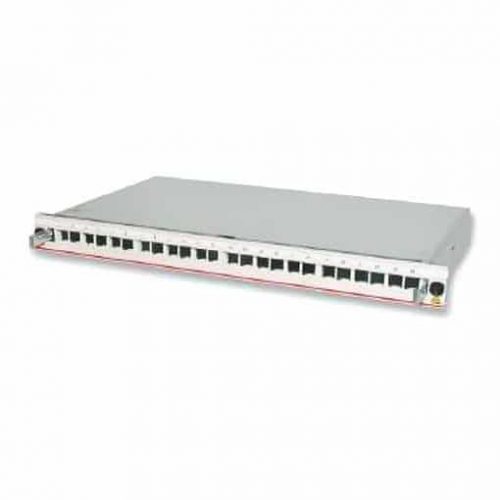

پچ پنل شبكه 24 پورت لگراند Cat6,STP
