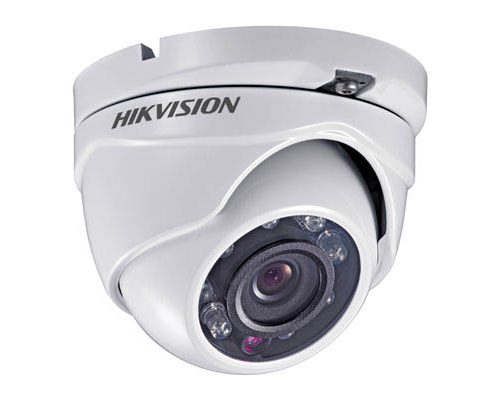

دوربین مداربسته انالوگ هایک ویژن DS-2CC51A2P
برای استعلام قیمت تماس بگیرید
دوربین مداربسته انالوگ (Dome)
| Camera |
| Image Sensor: |
1/3” DIS |
| Signal System: |
PAL/NTSC |
| Effective Pixels: |
976(H)×496(V) |
| Min. Illumination: |
0.1 Lux @ (F1.2, AGC ON) |
| Shutter Time: |
1/25(1/30) s to 1/15,000 s |
| Lens: |
3.6 mm (2.8mm,6 mm optional)
Angle of view: 68.4° (3.6 mm) |
| Lens Mount: |
M12 |
| Adjustment Range: |
Pan: 0 – 355°, Tilt: 0 – 90°, Rotation: 0 – 355° |
| Day& Night: |
Electronic |
| Horizontal Resolution: |
700 TVL |
| Synchronization: |
Internal Synchronization |
| Video Output: |
1Vp-p Composite Output (75Ω/BNC) |
| S/N Ratio: |
More than 62 dB |
|
| General |
| Operating Conditions: |
-40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing) |
| Power Supply: |
12 V DC±10% |
| Power Consumption: |
Max.1 W |
| Dimension: |
Φ 97.8 x 64.4 mm ( Φ 3.85” x 2.54”) |
| Weight: |
300 g (0.66 lbs) |
|
